T47E
ELECTRO-STATIC PIPEBURSTER
Designers note:
"Versatile midrange machine. The pulling force of this model makes it the strongest model in its class. Anything from asbestos to ductile is managed by the T47E"
47 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Tools

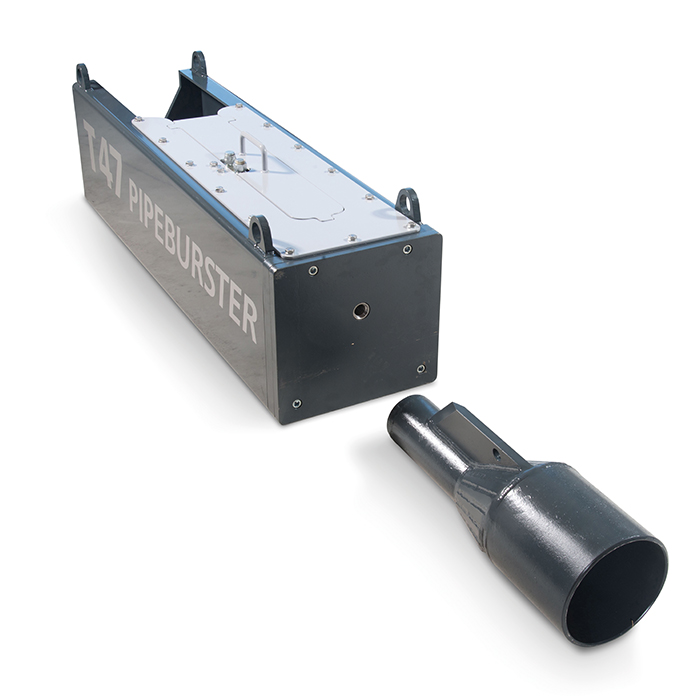

Cutting head
Excentric one-blade cutting head, designed for steel, cast and ductile

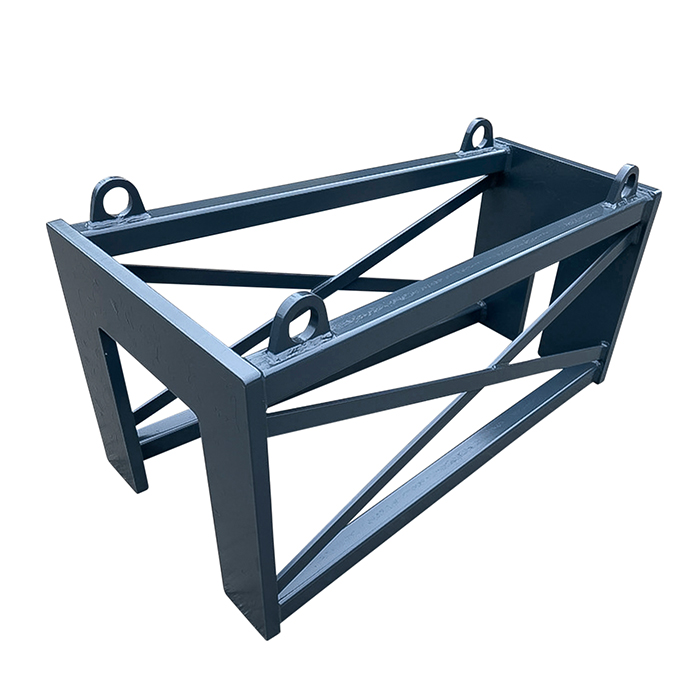

Extension frame
T47E heavy duty extension frame.

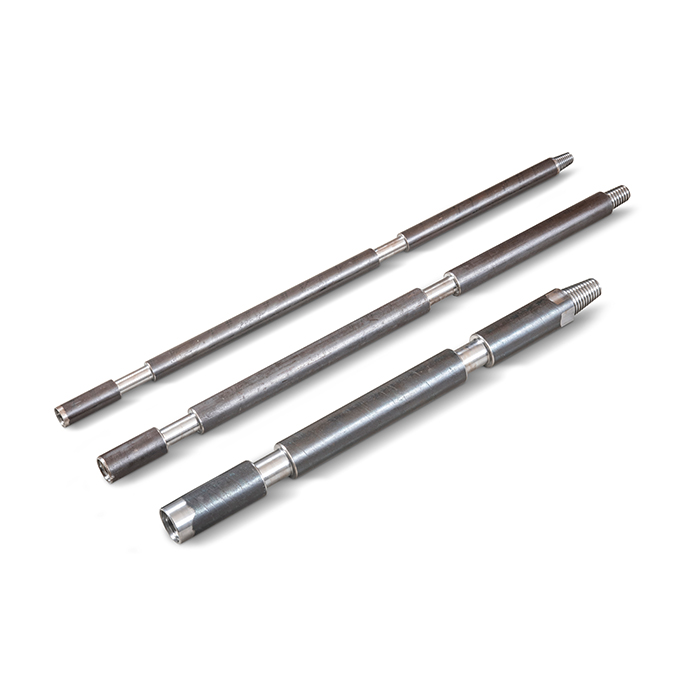

Solid steel rods
Model T47E high-grade composite material, designed for high safety margin.
Hydraulic power pack
T47E power pack, 7.5 kW electric engine. 250 bar op. pressure.
Video manuals
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Specifications
Pulling unit
Power pack
Steel rods
Pulling force
47 metric tons
( 103600 lbs. )
Measurements
160 x 45 x 50 cm.
( 63 x 17.7 x 19.7 inch. )
80 x 60 x 136 cm.
( 31.5 x 23.6 x 53.5 inch. )
Ø45 mm. x 1.00 meter.
( 1.77 x 39.4 inch. )
Weight
600 kg.
( 1322 lbs. )
630 kg.
( 1388 lbs. )
Ø45 mm. steel rod: 12 kg.
( 26 lbs. )
Engine
Electric engine 7.5 kW.
400 volt 16 amp. 50 Hz.
Connection:
3P + N + PE CEE
3P + N + PE CEE
Hydraulic system
3 cylinders
Max 250 bar.
( 3625 psi. )
1 variable pump
Variable pump flow:
< 100 bar. / 60 ltr. / min.
( < 1450 psi. / 15.8 gal. / min. )
Hydraulic oil cap: 60 ltr.
( 15.8 gal. )
Operational speed
Up to 1.0 meter. / min.
( 3.3 ft. / min. )
Operational range,
Existing pipe diameter
Existing pipe diameter
Ø50 mm. → Ø250 mm.
( 2 → 10.0 inch. )
