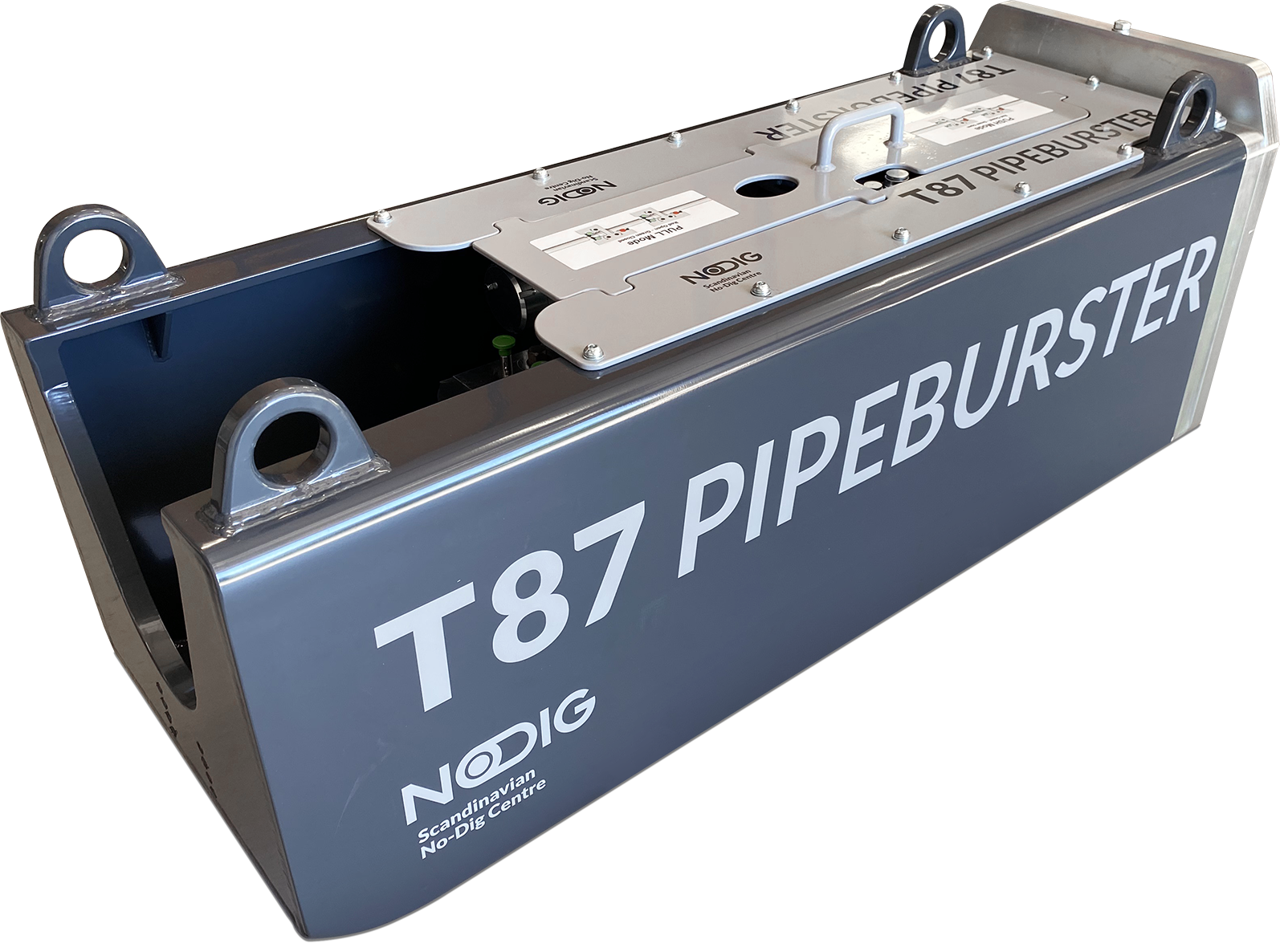

T87
HYDRO-STATIC PIPEBURSTER
Designers note:
"The successful combination of size and power has been brought together in the T87 pipeburster.
Five years of research and development has been put into this design.
High speed, great power and very low fuel consumption has made this our bestselling model, since it was introduced to the market."
92 metric tons of pulling power
Ø75 mm. → Ø400 mm. operational range
Pipe materials: Can operate in all known pipe materials
Ø75 mm. → Ø400 mm. operational range
Pipe materials: Can operate in all known pipe materials
Tools
Extension frame
T87 heavy duty extension frame.
Steel rod container
Container holding 40 pc's of Ø60 mm. T87 steel rods.
Cutting head
Excentric one-blade cutting head, designed for steel, cast and ductile.
Solid steel rods
Model T87 high-grade composite material, designed for high safety margin.

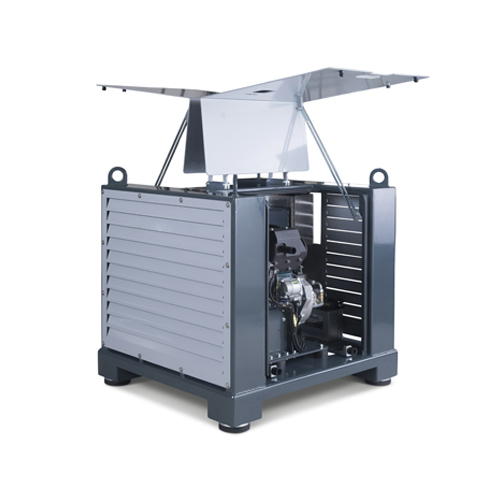

Hydraulic power pack
T87 power pack, 25 bhp. diesel engine. 250 bar op. pressure.
Video manuals
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Specifications
Pulling unit
Power pack
Steel rods
Pulling force
92 metric tons
( 202825 lbs. )
Measurements
180 x 65 x 72 cm.
( 71 x 25.6 x 28.3 inch. )
120 x 110 x 120 cm.
( 47.2 x 43.3 x 47.2 inch. )
Ø60 mm. x 0.75 meter.
( 2.36 x 29.5 inch. )
Weight
1400 kg.
( 3086 lbs. )
820 kg.
( 1807 lbs. )
Ø60 mm. steel rod: 15 kg.
( 33 lbs. )
Engine
Kubota 3-cyl. diesel
22 bhp. / 16.40 kW.
22 bhp. / 16.40 kW.
Fuel cap. 35 ltr.
( 9.25 gal. )
Fuel consumption: 5 ltr. / hr.
( 1.3 gal. / hr. )
Hydraulic system
3 cylinders
Max 250 bar.
( 3625 psi. )
Pump. 1: 35.0 ltr. / min.
( 9.25 gal. / min. )
Pump. 2: 22.5 ltr. / min.
( 5.95 gal. / min. )
Variable pump flow:
< 70 bar. → 57.5 ltr. / min.
( 1015 psi. → 15.2 gal. / min. )
> 70 bar. → 22.5 ltr. / min.
( 1015 psi. → 5.95 gal. / min. )
Hydraulic oil cap. 85 ltr.
( 22.45 gal. )
Operational speed
Up to 2.0 meter. / min.
( 6.5 ft. / min. )
Operational range,
Existing pipe diameter
Existing pipe diameter
Ø75 mm. → Ø400 mm.
( 3 → 16 inch. )
