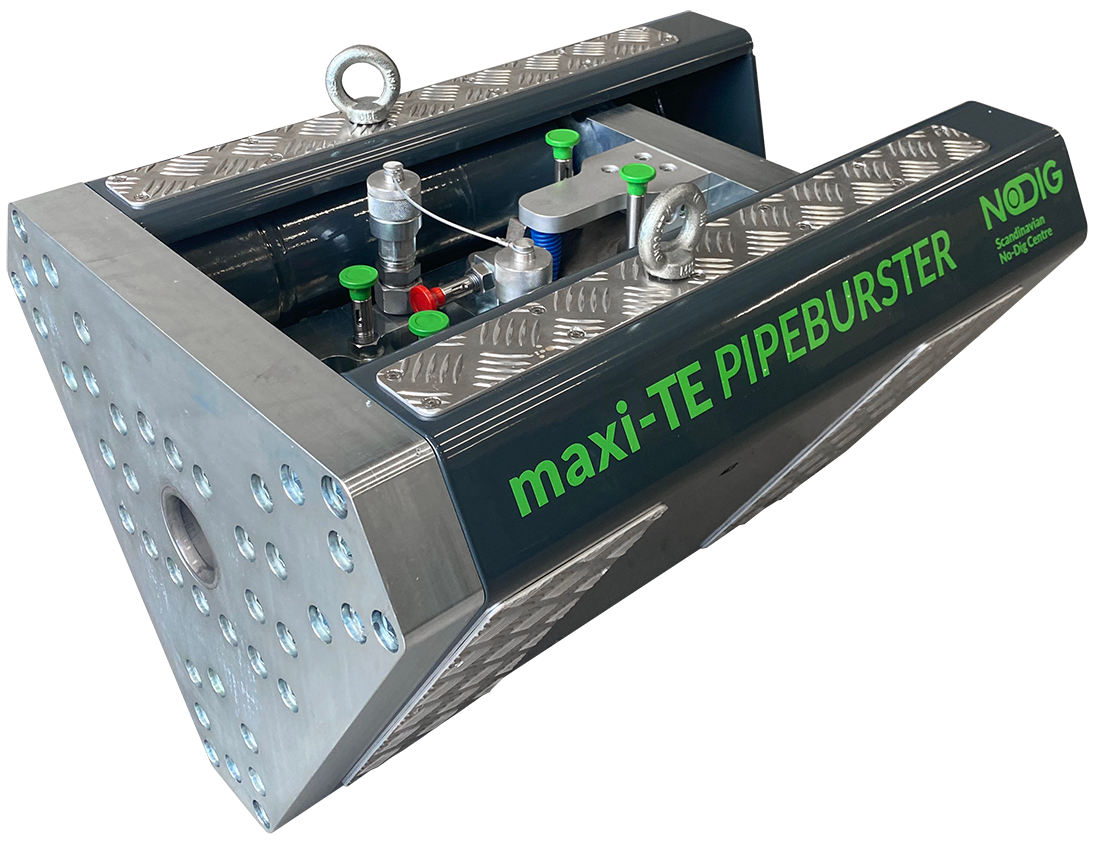

Maxi-TE
ELECTRO-STATIC PIPEBURSTER
Designers note:
"Designed for replacing larger sewer pipes between service shafts and small excavations"
60 metric tons of pulling power
Ø80 mm. → Ø400 mm. operational range
Pipe materials: Can operate in all known pipe materials
Ø80 mm. → Ø400 mm. operational range
Pipe materials: Can operate in all known pipe materials
Tools
Support Plate
Radius 500 mm. Positioned between the concrete shaft-wall and the pulling unit during installation.
Hydro-Static Extractor Frame
The hydraulic device extracts the bursting head and new product pipe from the ground, - here shown inside a Ø1000 mm. service shaft (1:1)

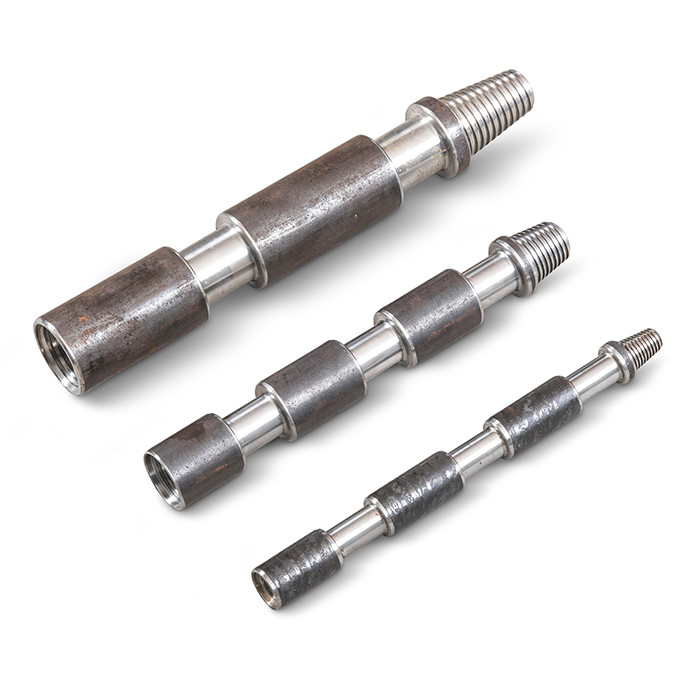

Solid steel rods
Model maxi-TE high-grade composite material, designed for high safety margin.

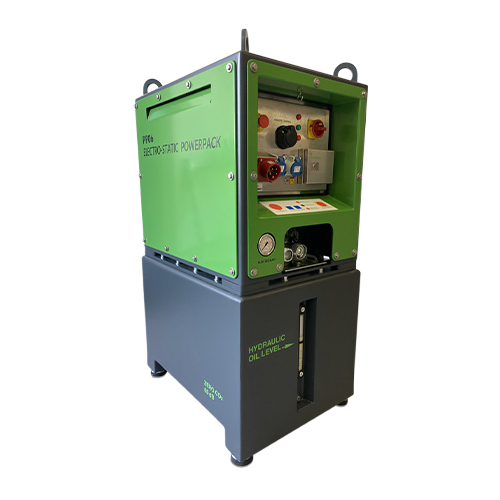

Hydraulic power pack
Maxi-TE power pack, 7.5 kW electric engine. 250 bar op. pressure.
Video manuals
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Specifications
Pulling unit
Power pack
Steel rods
Pulling force
60 metric tons
( 134400 lbs. )
Measurements
73 x 54 x 58 cm.
( 28.7 x 21.3 x 22.8 inch. )
80 x 60 x 136 cm.
( 31.5 x 23.6 x 53.5 inch. )
Ø60 mm. x 0.33 meter.
( 2.36 x 13.0 inch. )
Weight
380 kg.
( 838 lbs. )
630 kg.
( 1388 lbs. )
Ø60 mm. steel rod: 5.75 kg.
( 12.7 lbs. )
Engine
Electric engine 7.5 kW.
400 volt 15 amp. 50 Hz.
Connection:
3P + N + PE CEE
3P + N + PE CEE
Hydraulic system
3 cylinders
Max 250 bar.
( 3625 psi. )
1 variable pump
Variable pump flow:
< 100 bar / 60 ltr. / min.
( < 1450 psi. / 15.8 gal. / min. )
Hydraulic oil cap. 60 ltr.
( 15.8 gal. )
Operational speed
Up to 0.6 meter. / min.
( 2 ft. / min. )
Cylinder stroke: 11 cm.
( 4.3 inch. )
Operational range,
Existing pipe diameter
Existing pipe diameter
Ø80 mm. → Ø400 mm.
( 3.0 → 16 inch. )
