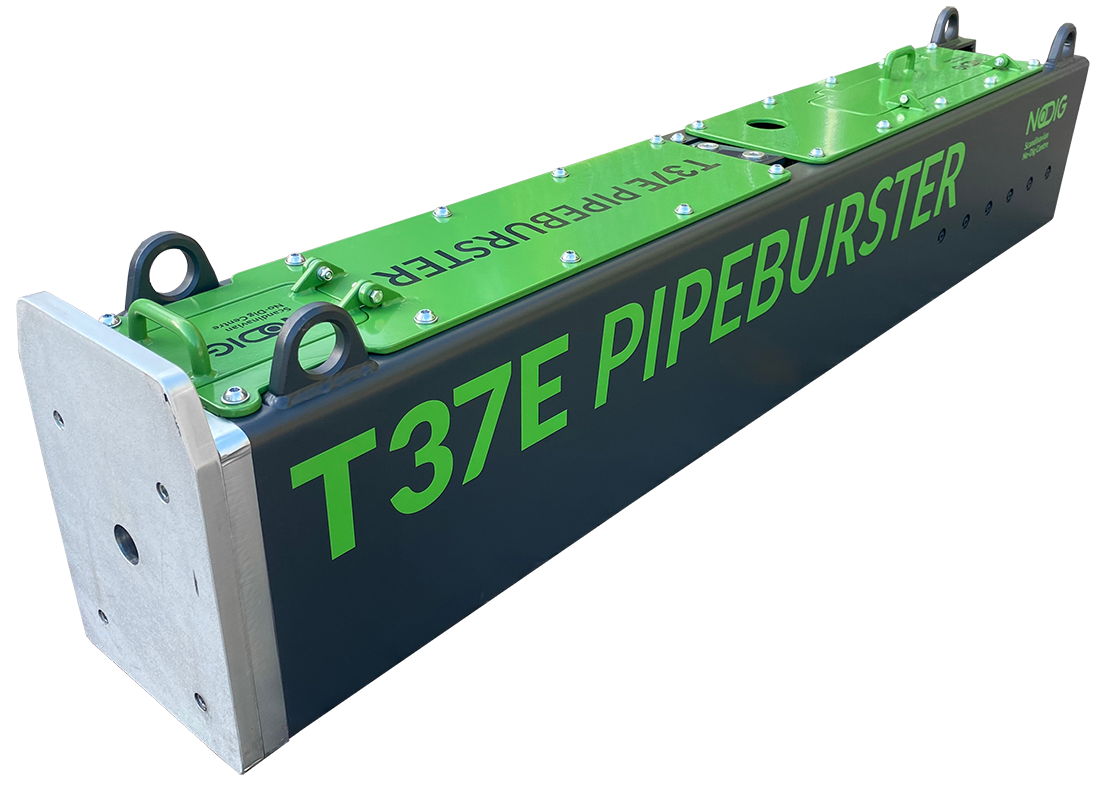

T37E
ELECTRO-STATIC PIPEBURSTER
Designers note:
"This model is specifically designed for the water and gas industry. Where parallel utilities and lack of space can prevent the use of standard machines, the slim and narrow design (300 mm.), enables the contractor to undertake this type of work without hesitation. The T37E holds the highest productivity level, in the No-Dig catalogue."
41 metric tons of pulling power
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Ø50 mm. → Ø250 mm. operational range
Pipe materials: Can operate in all known pipe materials
Tools

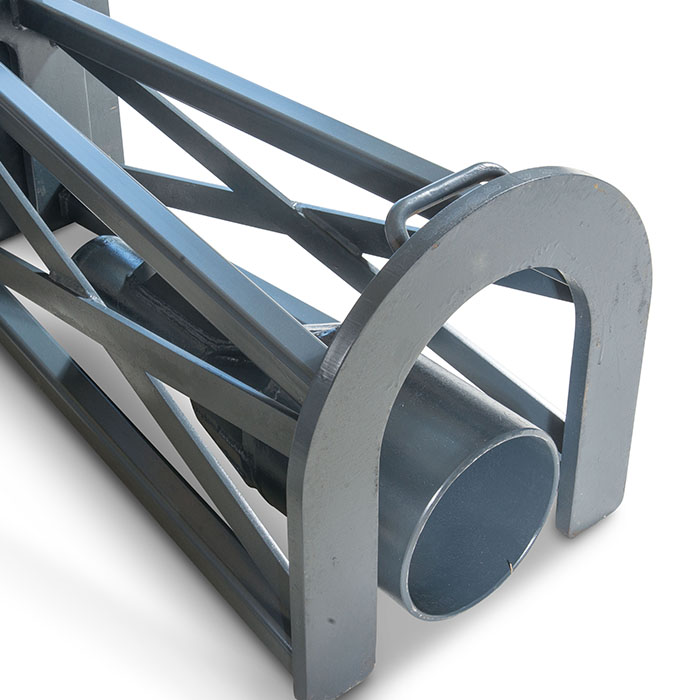

Extension frame
The extension frame is used for bursting tool extraction.

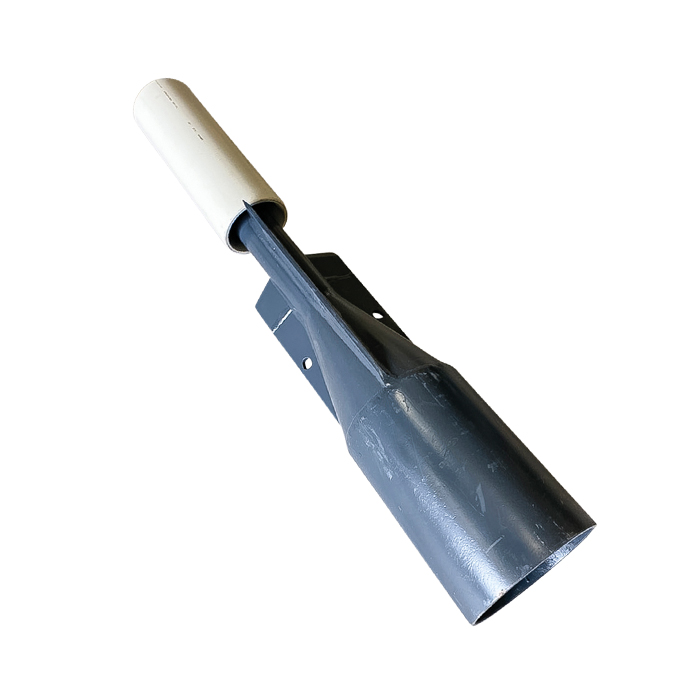

Bursting head
3-blade bursting head for PVC/HDPE pipe replacement.
Solid steel rods
Model T37E high-grade composite material, designed for high safety margin.
Hydraulic power pack
T37E power pack, 7.5 kW electric engine. 250 bar op. pressure.
Video manuals
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Hydro Static Pipebursting Between Two Excavations
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer venenatis commodo tempus. Etiam diam urna, congue et scelerisque in, eleifend vitae purus.
Specifications
Pulling unit
Power pack
Steel rods
Pulling force
41 metric tons
( 90400 lbs. )
Measurements
207 x 30 x 44 cm.
( 81.5 x 11.8 x 17.3 inch. )
80 x 60 x 136 cm.
( 31.5 x 23.6 x 53.5 inch. )
Ø40 mm. x 1.00 meter.
( 1.77 x 11.80 inch. )
Weight
480 kg.
( 1085 lbs. )
630 kg.
( 1388 lbs. )
Ø40 mm. steel rod: 10.00 kg.
( 22 lbs. )
Engine
Electric engine 7.5 kW.
400 volt 16 amp. 50 Hz
400 volt 16 amp. 50 Hz
Connection:
3P + N + PE CEE
3P + N + PE CEE
Hydraulic system
1 cylinder
Hollow-design
Max 250 bar.
( 3625 psi. )
1 variable pump
Variable pump flow:
< 100 bar. / 60 ltr. / min.
(< 1450 psi. / 15.8 gal. / min.)
Hydraulic oil cap. 60 ltr.
(15.8 gal.)
Operational speed
Up to 2.0 meter. / min.
( 6.5 ft. / min. )
Operational range,
Existing pipe diameter
Existing pipe diameter
Ø50 mm. → Ø250 mm.
( 2 → 10.0 inch. )
